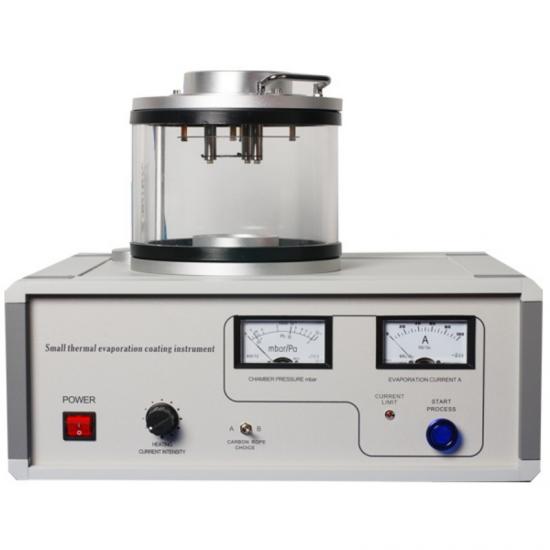

Nano PVD Thermal Evaporation Carbon Fiber Deposition System Coater For SEM/TEM

Model: BY-ZD01-Nanoscale Carbon Coating Machine

1. Product Overview

The BY-ZD01 Thermal Evaporation Carbon Coater is a precision instrument designed for depositing ultra-thin carbon films (≤1 nm) onto substrates for high-resolution electron microscopy applications. Utilizing resistive heating of pure carbon fiber strands, it ensures uniform and contamination-free coatings, making it ideal for SEM, TEM, EBSD, and microprobe analysis.

Key Features:

✔ Nanoscale Coating Precision – Deposits carbon films with minimal grain size (<1 nm) for high-resolution imaging.

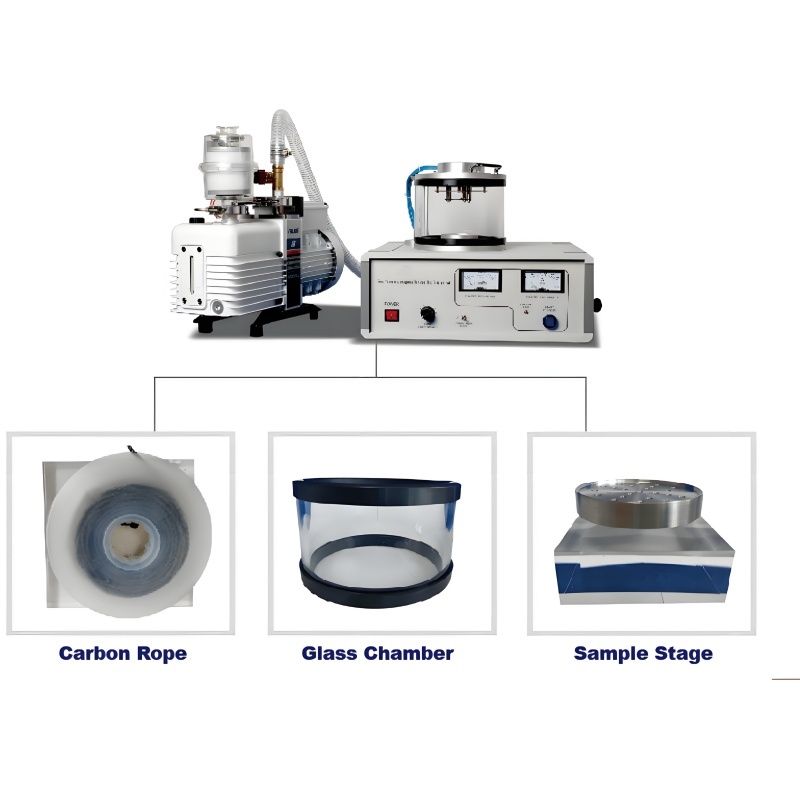

✔ Dual Carbon Fiber Source (A/B Selectable) – Ensures consistent evaporation and extended filament life.
✔ Vacuum Protection System – Prevents damage from low vacuum conditions.
✔ Fast Deposition (0-1 sec) – Optimized for laboratory efficiency.
✔ Compact & User-Friendly – Sleek design with intuitive controls.

2. Technical Specifications

Core Parameters

Vacuum System Performance

· Base Pressure: ≤2 Pa

· Pumping Speed:

o 50Hz: 8 m³/h (2.2 L/s)

o 60Hz: 9.6 m³/h (2.6 L/s)

· Time to Reach Vacuum: <5 minutes (to 2 Pa)

3. Applications

This is optimized for:

· Scanning Electron Microscopy (SEM) – Reduces charging effects.

· Transmission Electron Microscopy (TEM) – Provides ultra-thin conductive layers.

· EBSD (Electron Backscatter Diffraction) – Enhances signal clarity.

· Microprobe & X-ray Analysis – Ensures minimal interference.

4. Operational Advantages

· High Purity Carbon Films – Minimizes contamination for precise analysis.

· Quick & Repeatable Process – Ideal for high-throughput labs.

· Compact & Low Maintenance – Robust design with minimal upkeep.
