Wafer Sputtering Coater System For Metal/Dielectric Thin Film Deposition In Semiconductor/Optical

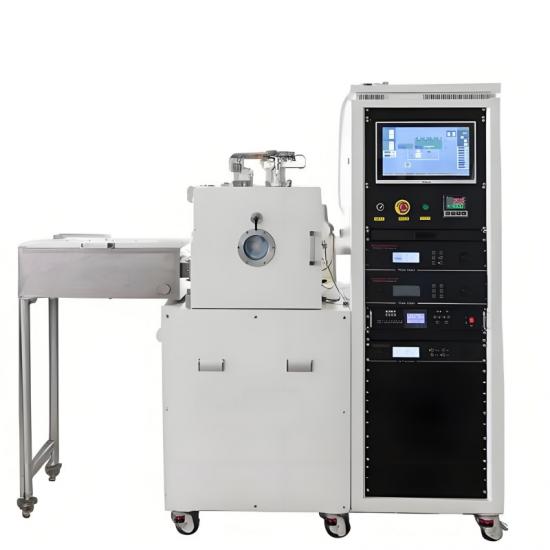

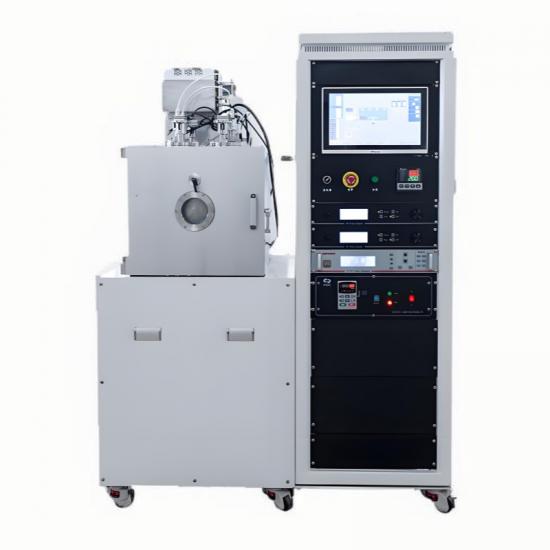

Model: Lith-PD-JS05-Wafer Sputtering Coater System
Product Overview

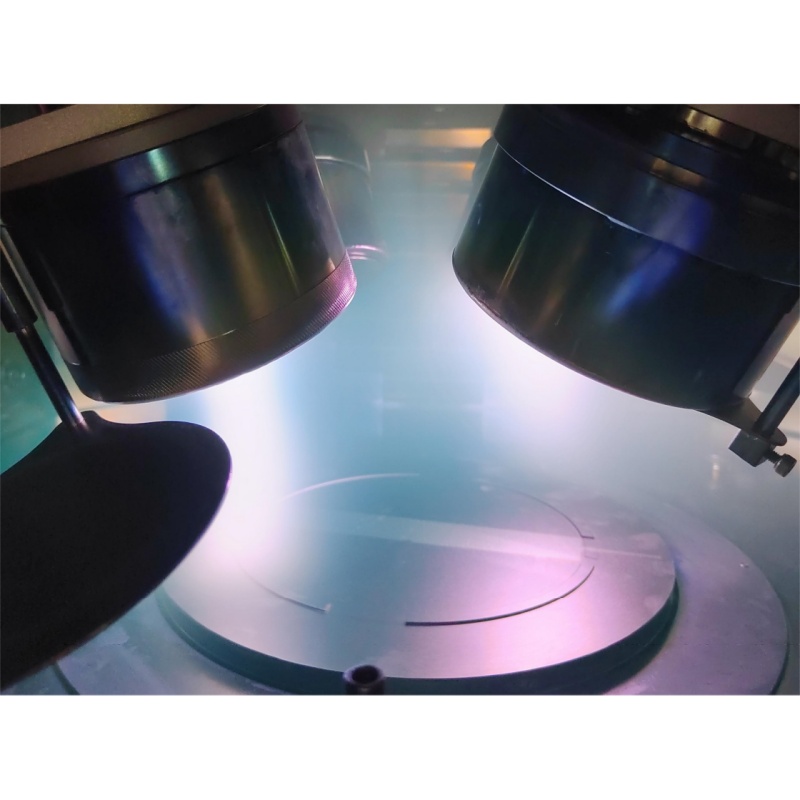

The Lith-PD-JS05 magnetron sputtering system is equipped with multiple sputtering sources, capable of depositing metallic, semiconducting, and dielectric materials. It supports the fabrication of multilayer thin films and co-sputtered alloy films with high precision.
Key Features
· Compact & Integrated Design: Space-saving layout with refined aesthetics, optional sample-loading functionality.
· High Uniformity Coating: Features 4× magnetron sputtering targets (2–4 inches), compatible with 2–8 inch wafers. Substrate holder ensures uniformity within ±3%–5% for 8-inch wafers.
· Flexible Control Options: Siemens PLC + touchscreen (manual/automatic) or PC + PLC full-automatic control.
Technical Specifications
· System Dimensions (L×W×H): 1400 × 1300 × 1900 mm
· Chamber Dimensions (L×W×H): 500 × 500 × 500 mm (PD-500C) / 600 × 600 × 500 mm (PD-600C)
· Substrate Stage: Max heating temperature 500–800°C
· Base Pressure: ≤5 × 10⁻⁵ Pa
· Pumping & Holding: Achieves 8 × 10⁻⁴ Pa within ≤30 min; pressure rise ≤8 Pa over 12 hours.
· Target Configuration: 4× sputter guns (2–3 inches or 2–4 inches), coating area 2–6 inches.
Applications & Advantages
Ideal for R&D and small-batch production, the PD-500C/600C excels in depositing high-quality, uniform thin films for optics, electronics, and functional coatings. Its modular control and excellent temperature/vacuum stability cater to advanced material research and industrial precision demands.
This vs. Conventional Model
|
Feature
|
Lith-PD-JS05
|
Conventional Systems
|
Advantage
|
|
Uniformity (8-inch wafer)
|
±3%–5%
|
±5%–10% or worse
|
Higher film consistency for precision applications
|
|
System Footprint
|
Compact (1400×1300×1900 mm)
|
30–50% larger
|
Saves lab/cleanroom space
|
|
Substrate Heating
|
500–800°C
|
Typically 300–600°C
|
Supports high-temperature depositions (e.g., oxides, nitrides)
|
|
Base Vacuum
|
≤5×10⁻⁵ Pa
|
~1×10⁻⁴ Pa
|
Better for reactive sputtering, reduced contamination
|
|
Pressure Stability
|
≤8 Pa over 12 hours
|
Frequent drift (>10 Pa in hours)
|
Longer process stability
|
|
Control Options
|
PLC + Touchscreen or PC + PLC
|
Manual or basic PLC
|
Flexible automation, better reproducibility
|
|
Target Configuration
|
4× guns (2–4 inch)
|
Often 2–3 guns (2–3 inch)
|
Wider material selection, co-sputtering capability
|
|
Coating Area
|
2–8 inch wafers
|
Typically ≤6 inch
|
Broader substrate compatibility
|
Key Takeaways
· Precision & Consistency: Superior uniformity (±3–5%) vs. conventional (±5–10%).
· Compact & Efficient: 30% smaller footprint without sacrificing performance.
· High-Temp & Vacuum Stability: Enables advanced materials (e.g., optical coatings, semiconductors).
· Automation Ready: PC-controlled processes improve repeatability over manual systems.
Ideal For: R&D labs, semiconductor fabs, and optical coating producers needing high-repeatability, multi-material deposition in a space-efficient design.
