6. The feeding and discharging directions of the equipment shall be consistent, and the tail of the electric core shall face the equipment operation surface.

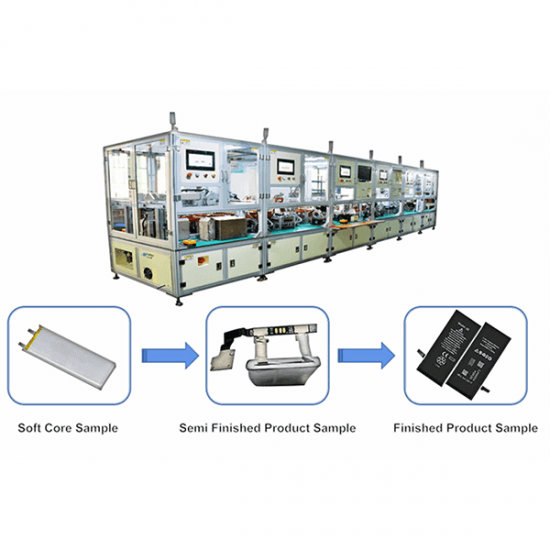

7. Process Applicability: Applicable to soft pack batteries with the same process.
8. Meet safety production requirements, including product safety and battery safety.
9. Overall Dimension (Excluding assembly line):
Wire body: 9200 (Long)*1200 (Width)*1900 (Height) mm
Assembly Line Height: 900mm±50mm
4.Overall Equipment Layout and Equipment Workflow Description

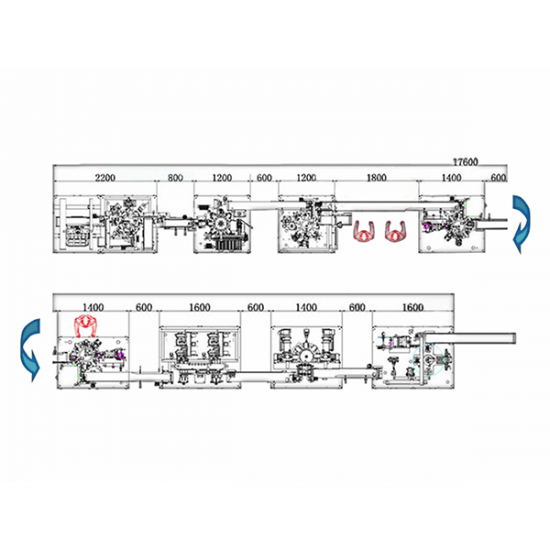

Overall Layout of Line Body:
Note: the line includes 4 persons, one of whom is responsible for the laser machine protection board;
2 persons are responsible for installing the rubber shell;
One person is responsible for feeding, inspecting the whole line and replacing materials such as tape.
Function and Action Requirements of Single Equipment:
(1)Automatic Feeding + Multifunction Machine:
1) Functional Action
①The battery is automatically loaded from the feeding tray to the assembly line of the feeding machine through the feeding machine, and the positioning cylinder is positioned;
②The shift manipulator grabs the battery from the loading machine assembly line to the multi-function machine feeding assembly line. The battery can be rotated by 90°or turned over at will;
③The electric core enters through the feeding assembly line of the multi-function machine. After the electric core is positioned, it is grabbed to the feeding station of the rotary table by the feeding manipulator;
④The rotary table rotates clockwise to enter the primary pole ear shaping station for pole ear shaping;
⑤Rotate the rotary table clockwise to enter the test station, test the voltage internal resistance, scan the code and upload the data;
⑥The rotary table rotates clockwise to enter the left tab cutting station to cut the left tab;
⑦The rotary table rotates clockwise and enters the cutting station of the right tab to cut the right tab;
⑨The rotary table rotates clockwise to enter the battery discharge station, discharge the battery, and grab it to the feeding line of the equipment; The cell rotates 90°and then turns 180°.
2) Technical Requirements
① Capacity (UPH): ≥1200pcs / h
② Equipment utilization rate: > 98%
③ Qualified rate: > 99.5%
④ Deviation range of pole lug cutting length: ±0.2mm
⑤ Cutter life ≥400000 times
⑥ Voltage test accuracy:±0.01% rdg. ±3dgt(According to the accuracy of the tester);
⑦ Internal resistance test accuracy:±0.5% rdg.±5dgt(According to the accuracy of the tester);
⑧ Misjudgment rate: it must be 100% in channel OK products and≤0.3% in channel ng products;
⑨ Scan the code of the cell, bind and upload the test data;
⑩ The material can be taken from the stacked plastic suction tray. The tray cannot be connected with the tray. The battery cannot be damaged during the reclaiming process. The empty tray after taking the material will be removed automatically and sorted into a stack;
⑪ Overall dimension (excluding assembly line):
2200 (Length)*1200 (Width)*1900 (Height) mm.
⑫ Material size:
Note: The load of electric core loading lifting table is less than or equal to 40kg.
Name
Length (mm)
Width (mm)
Thickness (mm)
Remarks
Suction Plastic Tray
270-420 mm
215-350 mm
Stacking height of multiple layers ≤ 250mm
The number of electric cells in each panel is 2-8
Battery
40-140mm
35-80mm
3-8mm
3) Key Configuration
①Tester: Lanqi BK600A, 1 set
②Scanning gun: Honeywell, 1 set
(2) Laser Welding Machine:
1) Functional Action
①The battery enters the laser machine through the feeding assembly line, is grasped by the feeding manipulator to the secondary positioning, and the battery rotates 90°;
②The loading manipulator grabs the battery from the secondary positioning to the turntable loading station, and the battery rotates 45°;
③The rotary table rotates counterclockwise to enter the pole ear shaping station for pole ear shaping;
④The rotary table rotates counterclockwise and enters the feeding station of the protection plate to load the protection plate;
⑤The rotary table rotates counterclockwise and enters the protection plate positioning station to position the protection plate;
⑥The rotary table rotates counterclockwise to enter the laser welding station for laser welding;
⑦The rotary table rotates counterclockwise to enter the battery
discharge station, discharge the battery, and grab it to the feeding line of the equipment.
2) Technical Requirements
①Capacity (UPH): ≥1200pcs / h;
②Equipment utilization rate: > 98%;
③Qualified rate: > 99.5%;
④Position accuracy of laser welding: ±0.02mm;
⑤Check the welding position of the protective plate and the electrode lug of the electric core, and the position accuracy: ±0.1mm;
⑥Pre judgment of spot welding (weld when the protective plate and the electrode lug of the electric core are placed OK, and pick them out without welding when NG);
⑦Welding firmness standard: tensile force of nickel and nickel materials≥2kgf, tensile force of aluminum and nickel materials≥0.6kgf;
⑧The positive and negative ear energy of laser welding can be set separately and switched freely (Note: the laser machine manufacturer is responsible for this item, and the wire body manufacturer is responsible for triggering the connection, etc.);
①The battery enters the double-sided adhesive tape + L-shaped nickel sheet bending + protective plate bending machine through the feeding assembly line. After the electric cell is positioned, it is grabbed to the turntable loading station by the feeding manipulator;
②Rotate the rotary table counterclockwise to enter the gluing station to complete the gluing of double-sided adhesive at the cup mouth;
③The rotary table rotates counterclockwise and enters the L-shaped nickel sheet bending station to bend the L-shaped nickel sheet;
④The rotary table rotates counterclockwise and enters the shaping station to shape the L-shaped nickel sheet to ensure the fit;
⑤The rotary table rotates counterclockwise to enter the FPC shaping station to shape the FPC;
⑥The rotary table rotates counterclockwise to enter the protective plate bending station and bend the protective plate 90 °
⑦The rotary table rotates counterclockwise and enters the battery discharge station. The battery discharge is directly grabbed by the manipulator to the feeding assembly line of the equipment;
⑧After manually completing the processes of manually installing rubber shell, manually folding protective plate and manually folding soft and hard combination plate on the assembly line, the battery flows into the equipment.
2) Technical Requirements
①Capacity (UPH): ≥1000pcs / h;
②Equipment utilization rate: > 98%;
③Qualified rate: > 99.5%;
④Inner diameter of double-sided adhesive cylinder (mm):∅76;
⑤Gluing accuracy: ±0.25mm;
⑥Bending angle: less than or equal to 90;
⑦The electric core, protective plate and its components shall be protected to prevent damage;
⑧Overall dimension (excluding assembly line):
1200 (Length)*1200 (Width)*1900 (Height) mm.
(4) Full Automatic Head Gluing Machine:
1) Action Function
①The battery enters the head gluing machine through the feeding line. After the electric cell is positioned, it is grabbed to the turntable loading station by the feeding manipulator;
②Rotate the rotary table counterclockwise to enter the head gluing station and stick the forming glue on the upper surface of the battery;
③Rotate the rotary table counterclockwise to enter the glue wrapping station and wrap the ears on both sides of the molding glue on the back of the battery;
④The rotary table rotates counterclockwise to enter the glue wrapping station and wrap the top of the head forming glue to the back of the battery;
⑤The rotary table rotates counterclockwise to enter the battery discharge station, discharge the battery, and grab it to the feeding line of the equipment.
2) Technical Parameters
①Capacity (UPH): ≥1100pcs / h;
②Equipment utilization rate: > 98%;
③Qualified rate: > 99.5%;
④Inner diameter of double-sided adhesive cylinder (mm): ∅76;
⑤Gluing accuracy: ± 0.25mm;
⑥Overall dimension (excluding assembly line):
1400 (Length)*1200 (Width)*1900 (Height) mm.
5.General Requirements for Equipment
(1) General Use Requirements
1) Each station equipment can select independent operation or binding operation and save data according to the requirements of each module.
2) The tooling fixture can be replaced and is applicable to other models of products.
3) Easily worn parts must be replaceable separately.
4) Anti skid treatment must be carried out for the screws in the stations with high equipment activity and strength, and dental braces shall be installed on the screw holes on bakelite and other parts.
5) Avoid or protect the parts that can damage the electric core, such as falling, crushing, scratching, welding, etc.
6) The electrostatic treatment of the whole equipment shall meet the
requirements of the company, and the contact parts of the protective plate shall be made of anti-static materials.
7) Each equipment shall be equipped with lighting facilities separately, and energy-saving lamps are required.
8) Product protection and quality control:
①Not lower than the requirements of existing manual line operation (see product process flow chart for details).
②The operation process requires that the battery bar code is bound to realize card closing to avoid missing processing and outflow of defective products.
(2) Mechanical Safety Requirements
1) Comply with national safety standards and national safety and health regulations.
2) The equipment shall be provided with good and comprehensive safety protection measures, such as protective net, photoelectric protection, protective grating and other protective devices. The rotating parts, dangerous parts and dangerous parts on the equipment shall be provided with protective devices.
3) Protective devices and other facilities shall prevent operators from entering the operation dangerous area, or when personnel enter the dangerous area by mistake, the equipment can perceive the corresponding protective action, which is unlikely to cause injury to personnel, that is, the protective devices shall realize linkage and interlock with the equipment control system.
4) Movable parts and components that are frequently adjusted and maintained shall be equipped with movable protective covers. If necessary, interlocking device shall be installed to ensure that movable parts cannot be started without closing the protective device (including protective cover, protective door, etc.); Once the protective device (including protective cover, protective door, etc.) is opened, the equipment shall stop automatically immediately.
5) The transmission, action, radiation and other parts of the equipment shall have good screen protection devices.
6) The operating mechanism of the equipment, such as handle, hand wheel and pull rod, shall be set with convenient operation, safety and labor saving, clear, complete, firm and reliable marks.
(3) Electrical Safety Requirements
1) The control system can ensure that the energy supply of the equipment will not cause danger in case of abnormality, and the equipment itself will not be damaged or hurt personnel.
2) The control system shall be far away from flammable, explosive, high temperature, high humidity and high corrosion areas. If it is unavoidable, necessary shielding measures shall be set, and the control cabinet shall have good heat dissipation conditions. The control line shall ensure that it will not cause harm even if the line fails or is damaged.
3) The control system shall be placed at the position convenient for operation and observation by the operator. The equipment is equipped with necessary emergency stop buttons according to specific conditions. The emergency stop mechanism must be self-locking, and its operation color is red. If there is a background color, the background color shall be black. The operating parts of button operated switch shall be palm push type or mushroom head type.
4) Electrical control system of equipment: with overload protection and short circuit protection functions.
5) During inspection, adjustment and maintenance, the production equipment that needs to observe the dangerous area or parts of the human body need to extend into the dangerous area must be prevented from misstartup. When the equipment may endanger personal safety due to accidental start, mandatory safety protection devices must be configured to prevent accidental start.
6) When the energy is cut off accidentally and then switched on again, the equipment must be able to avoid dangerous operation.
7) The three-phase five wire power supply system is adopted, and the protective neutral connection measures are adopted for the equipment shell.
8) During the operation of the equipment, when a component fails or is
damaged, the equipment itself has corresponding protective measures, which can not cause greater damage to the equipment itself or harm the operator. Protection measures mainly include: action running time protection: when the actual running time of an action exceeds the normal value, it will give an alarm; Misoperation protection: due to the lax sealing and pressure relief of the pipeline, there shall be an alarm when the parts that should not act act act.
9) There are measures to prevent wire wear around the outlet of the distribution cabinet, and there is no connector in the middle of the power line.
6.Brand and Packing List of Important Parts
(1) Brands of Important Parts:
NO.
Standard Part Category
Description of Function and Brand Restrictions
1
Frame
Surface paint baking treatment
2
Big Board
The surface shall be electroplated with a thickness of 20mm
3
Machined Parts
Sand blasting and oxidation treatment for aluminum parts and electroplating treatment for iron parts
4
Man-Machine
Brand limited to vialon
5
PLC
Omron has a three-year warranty and reserves 10% ports
6
Power Supply
Omron, Delta, Mingwei and other switching power supplies
7
Sensor
Panasonic, Kearns, Omron
8
Electric Control Accessories
Wiring bar and other electrical parts shall be at least domestic high-quality brands
9
Contactor
Schneider, Omron
10
Button
Schneider, Omron
11
Ordinary Motor
Xintaichuang
12
Stepper Motor
Reyes
13
Servo Motor
Panasonic, Fuji
14
I / O Board
Lesai, Ni, Gugao
15
Ordinary Cylinder
Yadeke, SMC
16
Rodless Cylinder
Yadeke, SMC
17
Solenoid Valve
Yadeke
18
Gas Source Treatment Combination
Yadeke
19
Bearing or Linear Bearing
Mismi, NSK, THK and other brands
20
Guide
Shanghai Bank, THK and other brands
21
Linear Module
Shanghai silver, Mismi and other brands
22
Structural Standard Parts
Shanghai silver, Mismi and other brands
23
IPC
Yanxiang
24
Monitor
Philips
(2) Packing List
NO.
Name
Quantity
Remarks
1
Packing List
1 copy
2
Certificate of Conformity
1 copy
3
Operation Manual
2 copies
4
Machining Drawing of Vulnerable Parts
1 copy
5
Electrical Schematic Diagram
2 copies
Electronic file
6
Schematic Diagram of IO Connection
2 copies
7
Equipment Maintenance Manual
1 copy
8
List of Vulnerable Parts
1 copy
Electronic file

1. We supply machines with battery technology support.
2. We supply full set of lithium battery equipment for lab research, pilot scale research and production line.
5V 10A 256 Channel Grading Machine for Pouch Cell
I. Equipment Configuration List
No.
Category
Product Name
Model
Quantity
Remark
1
Cell Grading Equipment
Pouch Cell Grading Machine
TMAX-XL6512LK-5V6A
1 set
256CH5V10A
2
Accessories
Communication Accessories
Communication cables /
RJ45 plugs, etc.
Several
Suitable for on-site connection
II. Equipment Scope and Function
1) Equipment Application Scope:
Mainly used for cell formation and capacity grading. It is suitable for specific cell types (cell size drawings provided by the user).
Cell size: 170 mm × 70 mm (customization available for larger sizes).
2) Supported Test Functions:
Constant current charging, constant current–constant voltage charging, constant current discharging, resting, etc.
III. Process Flow Diagram
Manual loading → Send process step → Process completion → Manual unloading
IV. Equipment Description
1) Open-frame structure with four doors, 8 layers each, totaling 32 fixture trays.
2) Each tray holds 16 cells (16 channels), totaling 512 channels.
3) The equipment contacts the positive and negative poles of the cells for charge/discharge testing.
V. Environmental Requirements
1) Power supply: AC 380V ±10%, 50Hz ±5%, max cabinet input power: 20KW (512CH)
2) Ambient temperature: 0–40°C
3) Ambient humidity: ≤75% R.H (no condensation)
4) Environment: No strong vibration, no corrosive or flammable/explosive gases
5) ESD protection: Grounding required with independent grounding port
Ⅵ. Technical Parameters
No.
Item
Specification
1
Channel Control Mode
Whole-machine start testing
2
Voltage
Per-channel voltage range
Charge: 10 mV ~ 5000 mV
Accuracy
±(0.05%RD + 0.05%FS)
Resolution
1 mV
Minimum discharge voltage
2000 mV
3
Current
Per-channel current range
Charge: 10 mA ~ 10000 mA; Discharge: –10 mA ~ –10000 mA
Accuracy
±(0.05%RD + 0.05%FS)
Resolution
1 mA
4
Time
Step time range
1–1000 min/step, accuracy ±0.1%
5
Data
Save interval
Δt: 1–999 min; ΔU: 10 mV; ΔI: 10 mA
Statistics
Open-circuit voltage, average voltage, working time, current, capacity, platform capacity per step; detailed curves and data for each step; number of cells in each capacity segment
6
Charging
Charging modes
Constant current (CC), Constant current–constant voltage (CC-CV)
Cut-off conditions
Voltage, current, relative time, capacity
7
Discharging
Discharging mode
Constant current (CC) discharge
Cut-off conditions
Voltage, current, relative time, capacity
8
Cycle
Cycle measurement range
1–32 cycles
Steps per cycle
16
9
Curve Display
Current curve, voltage curve, capacity curve
10
Protection
Software protection
Power-off data protection; configurable safety limits: low/high voltage, low/high current, capacity upper limit
Hardware protection
Anti-reverse-connection protection module
11
Voltage & Current Sampling
Four-wire connection
12
Noise Level
< 75 dB (measured at 1000 mm)
13
Communication (Host PC)
CAN communication
14
Data Output
Excel, PDF, graphs
15
Accuracy Temperature Range
25 ± 3°C
16
Sorting Function
Yes; supports hardware LED sorting and software sorting
17
Inspection Speed
9 s
18
Equipment Failure Rate
≤ 2%
19
Offline Protection
Automatically pauses when communication is lost; resumes after confirmation via PC command
20
Appearance Color
International standard warm gray 1C
Ⅶ. Equipment Appearance
Item
Description
Equipment Dimensions
(For reference only, subject to the actual machine)
Size (mm)
L: 1600 mm W: 550 mm H: 1850 mm
Cell Layout
Cells are placed horizontally on trays.
Material Loading Method
Total 64 trays; each tray holds 4 cells; total machine capacity: 256 cells.
Clamping Method
Manual clamping
Cooling System
Air cooling with axial fans for heat dissipation
2. Clamp
Clamp
7 Channel Pouch Cell Sorting Machine
Functional Overview
The Automatic Polymer Lithium Battery Sorting Machine is a high-efficiency automated equipment specially designed for the post-production sorting process of polymer lithium batteries. It is particularly suitable for power batteries, 3C digital batteries, and energy storage batteries.
The system meets the precision grouping requirements of new energy battery packs and complies with international safety standards. Its intelligent automation design promotes the transition of lithium battery manufacturing toward Industry 4.0, becoming a key solution for improving the core competitiveness of battery manufacturers.
Main Performance Parameters
1) Applicable Battery Type: Polymer lithium battery
2) Compatible Size Range: Length 50–170 mm, Width 20–100 mm, Height 4–20 mm
3) Control System: PLC programmable control
4) Integrated Functions: Fully automatic loading, testing, code scanning, and sorting process, reducing manual intervention
5) MES Interface: Real-time recording of QR code and test data, with SPC analysis report generation
6) Sorting Speed: Up to 1000 PCS/hour per unit — more than three times the efficiency of manual sorting
Equipment Environmental Requirements
Item
Parameter
Ambient Temperature
5°C–35°C
Humidity
20%–90%
Air Supply Pressure
0.5–0.6 MPa
Power Supply
220V, 50Hz/60Hz
Floor Load Capacity
≤200 kg/m²
Grounding Type
Direct grounding
Installation Site
Clean, level, no vibration or electromagnetic interference
Noise Level
≤80 dB
Equipment Parameters
Item
Specification
Machine Dimensions
L1800 × W1570 × H1750 mm
Machine Weight
Approx. 493 kg
Machine Color
Computer white (customizable)
Total Power
≤1.5 kW
Machine appearance and dimensions
Mainframe length*width*height: L1800mm*W1570mm*H1750mm
Machine Structure and Configuration
The sorting machine consists of a metal frame platform, pneumatic components, servo motors, sensors, PLC controller, and industrial control system.
Main Configuration Table
Category
Component
Brand
Remarks
Main Body
Cabinet Frame
TMAX
Metal base and aluminum profile upper frame
Main Worktable
TMAX
Electrical System
Barcode Scanner
Honeywell
Industrial PC
JIANO
Servo Motor
XINJIE
PLC Controller
XINJIE
Display
Philips / HKC
Internal Resistance Tester
HEPU
Standard Components
XingChen / Deke
5 Channel Pouch Cell Sorting Machine
Ⅰ、Introduction
The five channel pouch cell sorting machine is an automatic sorting device suitable for pouch battery cells. This device is compatible with multiple battery cell sorting. The device uses an internal resistance tester to test the internal pressure resistance of pouch cells. Based on the parameters set by the upper computer software, each cell's parameters are tested, and different grades of cells are moved to different channels according to the judgment results, thus achieving automatic sorting of cell products (the device has a scanning data storage function). The device consists of a feeding mechanism, a scanning mechanism, a testing mechanism, automatic sorting, etc. The upper computer software is designed and developed according to user requirements to automatically sort and collect cells into their corresponding collectors based on group information. The operation is simple, the sorting is accurate, and the efficiency is high.
Ⅱ、Overview of work steps:
The sorting machine consists of a feeding mechanism, a scanning mechanism, a testing mechanism, a leveling and cutting mechanism, an automatic sorting mechanism, and a unloading mechanism. Firstly, the entire battery is manually placed on the feeding assembly line. The feeding assembly line sends the batteries one by one to the scanning area for scanning and binding. Then, they go to the testing area for data testing and bind the scanned data with the QR code. After the testing is completed, the sorting and handling mechanism puts the batteries of different voltages into the sorting assembly line and flows them into the corresponding gear bin. This cycle of work continues.
Ⅲ、Equipment Specifications and Parameters
Weight: about 600kg
Equipment size:L 4283*W2014*H2100 mm
Power:AC220V 50Hz, 5KW
Work environment requirements: Temperature range of 0 ℃ -50 ℃, no pollution and strong electromagnetic interference
Air source requirements: 0.5-1.0Mpa factory air source, 0.5-0.7Mpa compressed air
Ⅳ、Equipment System Technical Parameters
Number of equipment sorting files: 4 (OK)+1 (NG) files
Internal resistance detection accuracy: range 0-60m Ω;
accuracy ± 0.5% rdg; Resolution of 0.1m Ω
Voltage measurement accuracy: range 0-20V;basic accuracy ± 0.015% rdg; Resolution 0.1mV
NG equipment failure rate: ≤ 2% (failures caused solely by equipment)
Probability of product damage: ≤ 0.1%
Equipment production capacity speed: ≥ 10PPM
Suitable battery model:Pouch battery cell
Ⅳ、Overall Equipment Layout
High-Power 20kHz Ultrasonic Welding Machine for Pouch Battery Packs
The ultrasonic welding system consists of an ultrasonic generator, transducer, welding mold (horn), pneumatic components, machine frame, and other parts.
Working Principle:
The transducer converts the high-power ultrasonic frequency oscillating signal generated by the ultrasonic generator into mechanical energy of the corresponding frequency. This energy is applied to the interface of the metal sheets to be welded. At this interface, heat is instantly generated, causing the particles in the metal lattice to activate. As a result, the molecules at the joining interface permeate into each other and form a solid weld.
I. Customer Welding Process Requirements & Corresponding Applicable Product Specifications
Item
Name
Substrate
20KHz(3000W)
1.1 Negative Electrode
1.1.1 Substrate
(electrode sheet) material
Copper foil
1.1.2 Substrate
(electrode sheet) thickness
6-12um
1.1.3 Tab (ear) material
Nickel strip
1.1.4 Tab (ear) thickness
0.01-0.1mm
1.2 Positive Electrode
1.2.1 Substrate
(electrode sheet) material
Aluminum foil
1.2.2 Substrate (ear) thickness
9-16um
1.2.3 Tab (ear) material
Aluminum
1.2.4 Tab (ear) thickness
0.01-0.1mm
1.3 Other material
1.3.1 Fe plate thickness
no more than 1mm
Cell
2.1 Cell structure
Winding or stacking
2.2 Number of layers
10–60 layers (subject to actual welding)
(4mm × 10mm weld mark)
Welding Process
3.1 Welding method
Direct welding
3.2 Weld mark area
(subject to actual welding by the customer)
Welding Horn and Anvil
4.1 Horn material
Imported high-speed steel
4.2 Horn tooth pattern shape
Upper welding head: serrated pattern
(can be modified based on actual welding process)
4.3 Horn length
(subject to customer requirements)
4.4 Usable welding surface of horn
2–4 usable surfaces
4.5 Horn service life
Negative electrode > 300,000 times,
Positive electrode > 400,000 times
4.6 Anvil material
High-speed steel
4.7 Anvil tooth pattern shape
Mesh pattern
(can be modified based on actual welding process)
4.8 Usable positions of anvil
1 piece
4.9 Anvil service life
Approx.: Negative electrode > 300,000 times,
Positive electrode > 400,000 times
4.10 Stroke of the horn
30mm
Transducer
5.1 Transducer frequency
20KHz±0.15KHz
5.2 Transducer power
3600W (peak)
Ultrasonic Generator
6.1 Ultrasonic power
≤3600W (peak)
6.2 Frequency tracking range
20KHz±1KHz
6.3 Frequency tracking method
Automatic real-time frequency tracking
6.4 Welding functions
Supports time and energy control modes
6.5 Pressure adjustment range
0MPa–1MPa, adjustable
6.6 Time adjustment range
0–60s, adjustable
6.7 Welding time
≤0.5S
6.8 Amplitude adjustment range
10%~100%
6.9 Quality control functions
Equipped with frequency, power, energy, and amplitude upper/lower limit alarm and shutdown functions.
6.10 Input voltage
220V ±10% AC (50/60Hz, single phase)
6.11 Welding Data Storage
The machine is equipped with memory to record and store welding data history.
6.12 Adjustable Welding Energy
Welding energy can be adjusted according to process requirements.
6.13 Welding Power Display
The machine can display the power of each welding operation.
Quality
7.1 Welding quality
Inter-layer fusion, firm welding, no missed or false welds, no cracks in the weld area or surrounding regions
7.2 Yield rate
≥99.5% (with consistent incoming materials)
7.3 Equipment Designed Service Life
10 years
7.4 Standard Accessories Included
One set of tools included.
7.5 Warranty
1-year warranty for the main unit, including welding head; consumables excluded.
II. Product Information
A. Utilizes advanced constant current and constant voltage circuit technology; ultrasonic amplitude is continuously adjustable.
B. Equipped with intelligent ICS chassis control system with secondary ultrasonic function; system performs self-diagnosis at startup, segmented intelligent amplitude output, and real-time automatic tracking.
C. The welding head’s mechanical structure adopts German-style X-axis guide rail design for extremely high precision.
D. Protection System:
1) Voltage protection system (supply voltage range: 220V–250V); output power and working frequency remain unaffected during automatic voltage stabilization.
2) Overload protection system
3) Overcurrent protection
4) Automatic compensation for unstable supply frequency
5) Feedback system for welding overload protection
III. General equipment configuration and standards
1) Noise Level:Measured at 1 meter from the equipment’s outer wall. Noise level during normal operation: <75dB.
2) Operating Environment:
3) Ambient Temperature: 20±5°C
4) Relative Humidity: 60% RH
5) Site must be free from corrosive gases/liquids and explosive gases.
6) Factory load-bearing capacity: ≤800kg/m2.
IV. Equipment Dimensions
1) Generator Dimensions (L × W × H): 550mm × 300mm × 550mm
2) Welding Head Dimensions (L × W × H): 480mm × 200mm × 380mm
Laboratory Compact Pouch Cell Tab Cutting Cutter Machine For Battery Tab Shaping
Product overview
This equipment is to achieve the function of cutting the tab of large polymer, small equipment, simple operation, and stable cutting. Both positive and negative tabs are cut without short circuit.
Product characteristics
1, small and simple equipment, easy to operate, low failure rate.
2. The machine solves the problem of simultaneously cutting the positive and negative electrodes of the polymer built-in battery to avoid short circuit.
3, used for cutting the length of the positive and negative ear before the polymer built-in battery welding protection plate (including mobile phone battery, mobile power supply, power battery, etc.).
Technical parameters
Power supply
220V50Hz 30W
Air source
0.4-0.8MPa
Applicable battery type
Polymer battery
Max. tab width
194mm
Min. gap of tab
10mm
The tab retains the shortest length
5mm
Cell length
30-200mm
Cell width
30-300mm
Cell thickness
2-12mm
Weight
10kg
Dimension
300*300*210mm
Cutting tab’s thickness
Al, Ni: max. 0.6mm
nickel plated copper: 0.4mm
Tabs Cutting and Testing Machine for Polymer Pack Assembling
Introduction
1. The equipment is small, easy to operate and the failure rate is ultra-low.
2. The machine solves the problem of cutting short circuit of positive and negative poles of polymer built-in battery at the same time.
3. It is used for cutting the length of positive and negative poles and tabs before welding the protective plate of polymer built-in battery (including mobile phone electricity, mobile power supply, power battery, etc.),
4. The voltage internal resistance test function of the cell is added. If the test value is within the set value range, the device will cut. If the test value is not within the set value range, it will not cut.
Technical parameters:
Power Supply
220V 50Hz 30W
Air Pressure
0.4-0.8MPa
Applicable Battery Range
Polymer Cell
Maximum Center Width of tab
140mm
Minimum Center Width of tab
4mm
Minimum Length of tab
3mm
Cell Length
30-200mm
Cell Width
20-160mm
Cell Thickness
2-12mm
Overall Dimension
230*180*200mm
Weight
8KG
