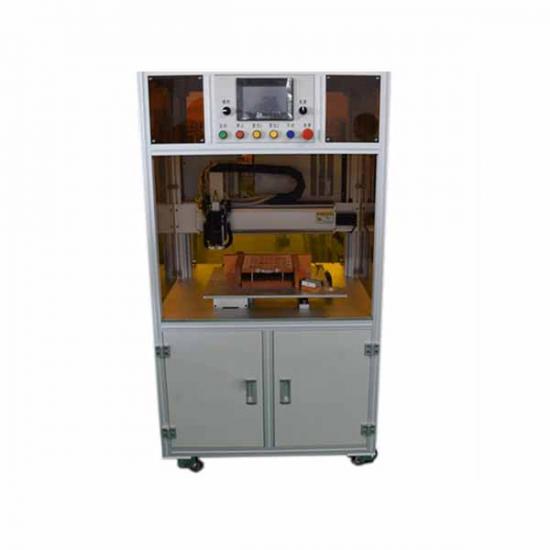

Automatic Numerical Control Single-Side Rotary Welding Head Spot Welder For Battery And Nickel Strips Welding
Feature

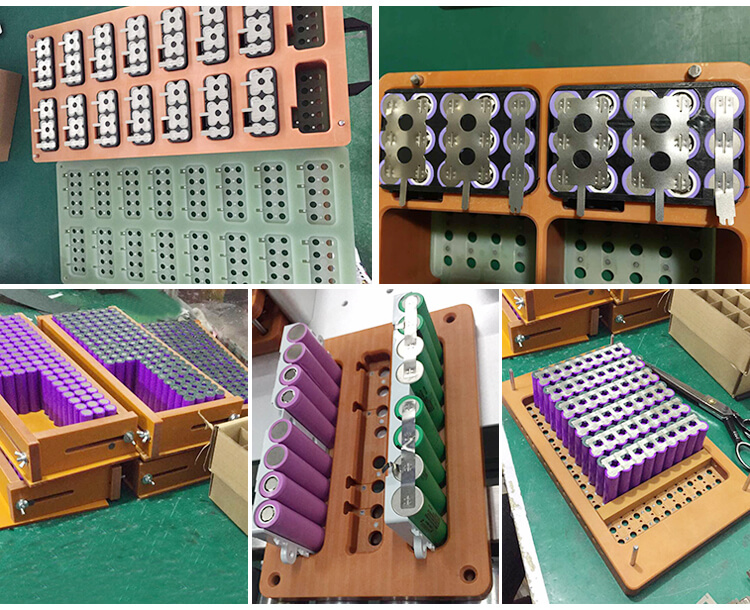

This equipment is mainly used forwelding batteries and nickel-plated steel strips or nickel strips in cylindrical/polymer battery assembly, and ensures that the welding tension between batteries and nickel-plated steel strips or nickel strips is greater than 30N. The spot welding range of the equipment can meet the welding requirements of 18650 batteries with 20 series battery packs and less than 20 series battery packs. The number of welding batteries is determined by the stroke, which can be set by man-machine.
Advantages:
1. Support breakpoint start, automatic start and manual start mode conversion.
2. Alarm function of false welding and desoldering.
3. The programming is simple, and supports any point programming and array programming. It can store 99 groups of programming files.
4. Warning of solder pin replacement forecast.
5. With welding current monitoring system, it can monitor welding current in real time
Specification
Power Supply and Voltage for Equipment
AC 220±10%，50HZ±2HZ, 500W
Welding Power Supply and Voltage
AC380V±10%，50HZ±2HZ，2000W
Welding Material
Pure nickel sheet: 0.03-0.2mm
Nickel-plated steel strip :0.03-0.3mm
Transmission Mode
TBI screw + Taiwan silver precision linear guide
Drying Mode
Stepping servo motor
Rotation Function of Welding Head
The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Maximum Spot Welding Speed
0.35S/point；2800pcs/h
Maximum speed of motor transmission
1000mm/S
Maximum No. of Load Cell
X-26; Y-26 (adjustable)
Repeat positioning accuracy
±0.02MM
Number of storable file groups
99
Operating system
Embedded system + man machine interface
Maximum Load-bearing Weight
30KG
Maximum Stroke Size Range
X：500mm，Y：400 mm，Z：35mm，R：180º
The distance between tooling platform and welding needle can be adjusted by 300 mm.
Welding Pressure
The pressure of the two welding needles can be adjusted independently. The pressure is stable, reliable and easy to adjust. The welding tension between the battery shell and the connecting piece is ensured to be more than 30N.
Welding Position
Cylindrical and top plane position of battery
Welding Process
Small spark spatter, no burr, no color change, beautiful welding, stable performance, no damage to the battery appearance;
Dimension
900L×900W×1650Hmm
Weight
200Kg
Power Cord
220V 10A
Pneumatic Connected Tube
Diameter 8 mm, easy to plug interface, air pressure 0.4 MPa
